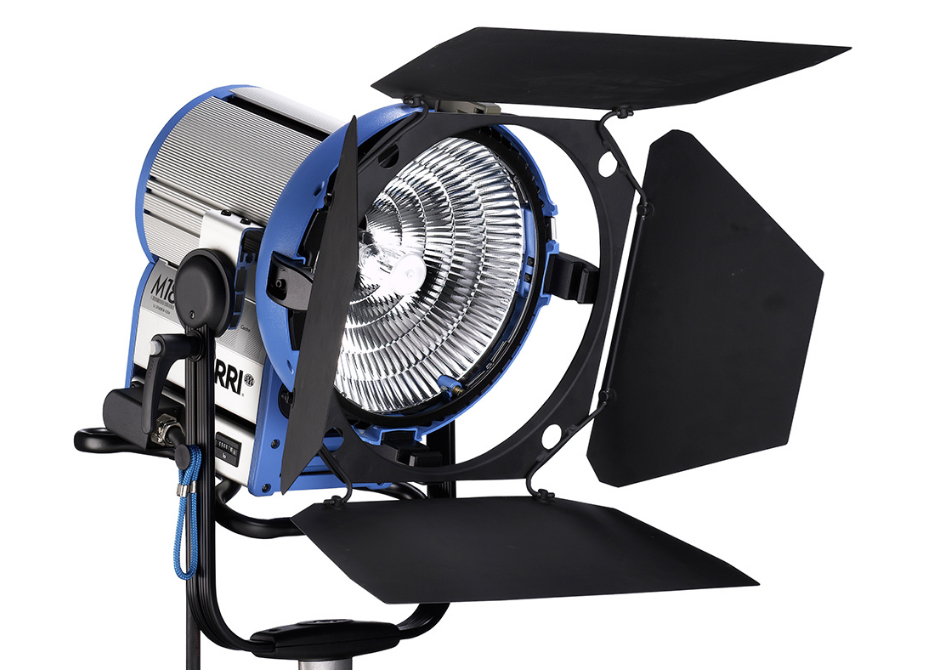

ARRI MINIMAX M18 FLICKER FREE

- ballast
- testa
- cavo segnale
- riduzione 16 / 15
- n.2 veli metallici
The Arri M18 source supports both the 1800w and 1200w HMI lamp and whose color temperature is 6000k. The new improved fork locking system allows supporting accessories from the Chimera brand. It offers a beam of light between 20º and 60º and is dimmable up to 50%.
Consumption hour hmi - 5EUR / hour
Power: 1800w | 1200w
Color temperature: 6000º K
1000hz flicker free ballast
Mount: Spigot 28mm
Weight: 10.5 kg
Mains PlugVEAM, Schaltbau (GTV-Standard)
Lamphead TypeOpen Face with Facetted Reflector, 1,200 / 1,800 W
ReflectorMAX Technology reflector made of high purity aluminium
Lamp TypeMetal Halide 1,800 W/SE; Metal Halide 1,200 W/SE
Power Consumption1,800 W / 1,200 W
Voltage Range100 V / 140 V
Lamp BaseG38
Dimmingyes, 50 to 100 % via ARRI Ballast Unit
Correlated Color Temperature6,000 K
Beam Angle20° to 60° (with 1,800 W lamp)
Weight in kg net*approx. 11.5 kg
Weight in kg packed*approx. 14.9 kg
Weight in lbs. net*approx. 25.36 lbs
Weight in lbs. Packed*approx. 32.85 lbs
Measurements (HxWxL) incl. Pin in mm*658 x 388 x 393 mm
Measurements (HxWxL) excl. Pin in mm*525 x 388 x 393 mm
Measurements (HxWxL) incl. Pin in inch*25.9 x 15.3 x 15.5"
Measurements (HxWxL) excl. Pin in inch*20.7 x 15.3 x 15.5"
Measurements (HxWxL) Packed size in mm*530 x 510 x 555 mm
Measurements (HxWxL) Packed size in inch*20.9 x 20.1 x 21.9"
Lens / UV-Protection Glass Diameter in mm276 mm
Lens Diameter in inch16.8"
Accessory Diameter in mm330 mm
Accessory Diameter in inch13.0" (Scrim)
Barndoor in mm344 mm
Barndoor in inch13.5"
MountingSpigot 28 mm / 1 1/8" (1.1")
Housing ColorBlue/Silver
Protection Class / IP RatingI / IP23
CertificationsCE, CB, ENEC, cNRTLus
