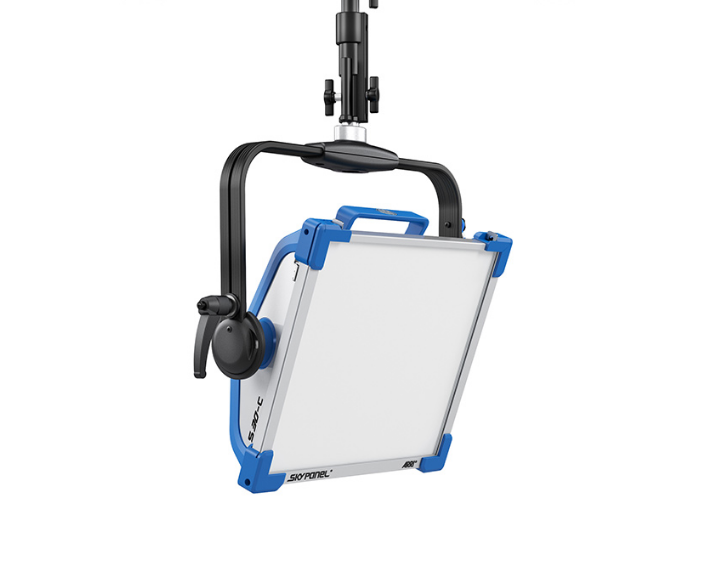

ARRI S30-C LED SOFTLIGHT KIT

- 1 ARRI S 30-C
- 2 cavi
- 1 Center block
- 1 Griglia interna
- 1 Alette
- 1 Ballast
Light Aperture / Lens Diameter in mm355 x 300 mm
Light Aperture / Lens Diameter in inch14.0 x 11.8"
Beam Angle115° (Half Peak Angle)
Weight in kg net*Manual Version: approx. 7 kg
Pole Operated Version: approx. 9 kg
Weight in kg packed*Manual Version: approx. 14 kg
Pole Operated Version: approx. 16 kg
Weight in lbs. net*Manual Version: approx. 15 lbs
Pole Operated Version: approx. 20 lbs
Weight in lbs. Packed*Manual Version: approx. 31 lbs
Pole Operated Version: approx. 34 lbs
Measurements (HxWxL) incl. Pin in mm*Manual Version: 499 x 507 x 133 mm
Pole Operated Version: 567 x 504 x 133 mm
Measurements (HxWxL) excl. Pin in mm*Manual Version: 426 x 507 x 133 mm
Pole Operated Version: 452 x 504 x 133 mm
Measurements (HxWxL) incl. Pin in inch*Manual Version: 19.6 x 19.9 x 5.2"
Pole Operated Version: 22.3 x 19.8 x 5.2"
Measurements (HxWxL) excl. Pin in inch*Manual Version: 16.8 x 19.9 x 5.2"
Pole Operated Version: 17.8 x 19.8 x 5.2"
Measurements (HxWxL) Packed size in mm*470 x 665 x 300 mm
Measurements (HxWxL) Packed size in inch*18.5 x 26.2 x 11.8"
HandlingAluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt
Mounting16 mm / 28 mm Combo Pin (Baby 5/8" / Junior 1-1/8" Combo.Pin) / 28 mm Spigot (Junior Pin)
Tilt Angle+/- 90°
Lamphead Voltage Input48 V DC
Power Consumption200 W Nominal, 220 W Maximum
Lamphead Power ConnectionMale 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive)
Battery ConnectorMale 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range23 to 36 V DC
Battery Mode Light Output100 % of total output
White Light2,800 K to 10,000 K continuously variable correlated color temperature
Colored LightFull RGB+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance+/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color RenditionCRI Average > 95, TLCI Average > 91
Green-Magenta AdjustmentContinuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming0 to 100 % continuous
ControlOn-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
Wireless ControlNot integrated, via SkyLink
Remote Device Management (RDM)DMX Setup, Hour Counter and Standard RDM Commands
Software / Mini-USB InterfaceEthernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software Upgrade via flash drive
Housing ColorBlue/Silver, Black
Ambient Temperature Operation-20 to +45° C (-4 to +113° F)
Protection Class / IP RatingIII / IP 20
Estimated LED Lifetime (L70)50,000 hours
Estimated Color Shift Over Lifetime (CCT)+/- 5 %
CertificationsCE, CB, ENEC, cNRTLus, FCC, PSE

Power Supply UnitS30 PSU
Power Supply Input Range110 to 240 V ~, 50/60 Hz
Power Supply Output Range48 V DC
Power Input ConnectionpowerCON TRUE1 (Bare Ends / Schuko / Edison)
Power Output ConnectionFemale 3-Pin XLR to 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
Weight in kgapprox. 2 kg
Weight in lbsapprox. 5 lbs
Measurements (HxWxL) in mm*91 x 115 x 388 mm
Measurements (HxWxL) in inch*3.6 x 4.5 x 15.3"
ControlOn-Board On/Off Switch
MountingSkyPanel PSU Super Clamp Adapter / Rail Mount Adapter
CertificationsCE, CB, ENEC, cNRTLus, PSE
