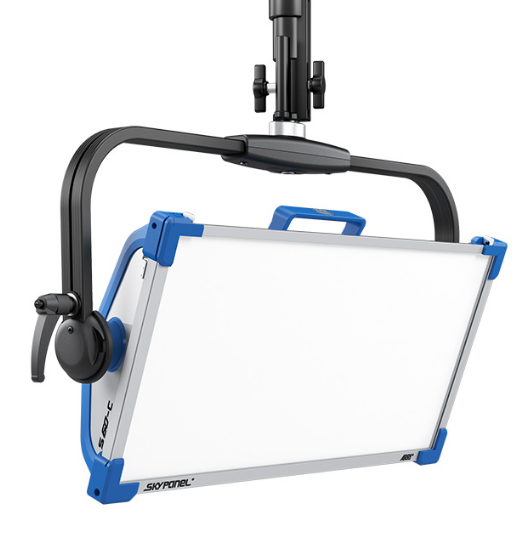

ARRI S60-C LED SOFTLIGHT KIT

- 1 ARRI S 60-C
- 2 cavi
- 1 Center block
- 1 Griglia interna
- 1 Alette
- 1 Ballast
Light Aperture / Lens Diameter in mm645 x 300 mm
Light Aperture / Lens Diameter in inch25.4 x 11.8"
Beam Angle115° (Half Peak Angle)
Weight in kg net*Manual Version: approx. 13 kg
Pole Operated Version: approx. 14 kg
Weight in kg packed*Manual Version: approx. 21 kg
Pole Operated Version: approx. 22 kg
Weight in lbs. net*Manual Version: approx. 28 lbs
Pole Operated Version: approx. 31 lbs
Weight in lbs. Packed*Manual Version: approx. 46 lbs
Pole Operated Version: approx. 49 lbs
Measurements (HxWxL) incl. Pin in mm*Manual Version: 566 x 826 x 133 mm
Pole Operated Version: 567 x 796 x 133 mm
Measurements (HxWxL) excl. Pin in mm*Manual Version: 433 x 826 x 133 mm
Pole Operated Version: 452 x 796 x 133 mm
Measurements (HxWxL) incl. Pin in inch*Manual Version: 22.3 x 32.5 x 5.2"
Pole Operated Version: 22.3 x 31.3 x 5.2"
Measurements (HxWxL) excl. Pin in inch*Manual Version: 17.0 x 32.5 x 5.2"
Pole Operated Version: 17.8 x 31.3 x 5.2"
Measurements (HxWxL) Packed size in mm*470 x 860 x 300 mm
Measurements (HxWxL) Packed size in inch*18.5 x 33.9 x 11.8"
HandlingAluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt
Mounting28 mm Spigot (Junior Pin)
Tilt Angle+/- 90°
Lamphead Voltage Input48 V DC
Power Consumption420 W Nominal, 450 W Maximum
Lamphead Power ConnectionMale 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive)
Battery ConnectorMale 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range23 to 36 V DC
Battery Mode Light Output50 % of total output
White Light2,800 K to 10,000 K continuously variable correlated color temperature
Colored LightFull RGB+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance+/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color RenditionCRI Average > 95, TLCI Average > 90
Green-Magenta AdjustmentContinuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming0 to 100 % continuous
ControlOn-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
Wireless ControlNot integrated, via SkyLink
Remote Device Management (RDM)DMX Setup, Hour Counter and Standard RDM Commands
Software / Mini-USB InterfaceEthernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software Upgrade via flash drive
Housing ColorBlue/Silver, Black
Ambient Temperature Operation-20 to +45° C (-4 to +113° F)
Protection Class / IP RatingIII / IP 20
Estimated LED Lifetime (L70)50,000 hours
Estimated Color Shift Over Lifetime (CCT)+/- 5 %
CertificationsCE, CB, ENEC, cNRTLus, FCC, PSE

Power Supply UnitS60/S120 PSU
Power Supply Input Range110 to 240 V ~, 50/60 Hz
Power Supply Output Range48 V DC
Power Input ConnectionpowerCON TRUE1 (Bare Ends / Schuko / Edison)
Power Output ConnectionFemale 3-Pin XLR to 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
Weight in kgapprox. 4 kg
Weight in lbsapprox. 8 lbs
Measurements (HxWxL) in mm*91 x 191 x 383 mm
Measurements (HxWxL) in inch*3.6 x 7.5 x 15.1"
ControlOn-Board On/Off Switch
MountingSkyPanel PSU Super Clamp Adapter / Rail Mount Adapter
CertificationsCE, CB, ENEC, cNRTLus, PSE
